KGUARD hybrid set HD1681-2WA713APK4 16+8 (CCTV+IP)kanálový rekordér 1080P/720p/960H/IPcam+8x 1M barevná venkovní kamera - AGEMcz
62110
HD1681-2WA713APK4/hd1681-8wa713a
[X5002]
KGUARD hybrid set HD1681-2WA713APK4 16+8 (CCTV+IP)kanálový rekordér 1080P/720p/960H/IPcam+8x 1M barevná venkovní kamera
HD1681-8WA713A Features
Support up to 24 cameras including BNCx16 and IPx8 (switch required)
Record in Megapixel HD resolution and various hybrid resolutions (960H, 720P/1080P) at the same time.
Support both Analog 1080P/720P/960H camera and ONVIF IP camera (8MP/5MP/4MP/3MP/2MP/1MP/D1).
Support mixing and installing Analog Cameras from different technologies (AHD 1080P/AHD 720P/Standard 960H). No need to be done in groups of two.
Important image data can be saved to cloud ( dropbox )
Connect max. 6ch/12ch/24ch of combined Onvif IP camera & analogue cameras to HD DVR
Easily connect DVR with mobile devices by scanning QR code via KView pro. App.
Support up to 6TB HDD
Wide-Angle 720P (1 Megapixel) HD cameras provide crystal clear images for video recording.
Long range night vision up to 30meters (98ft) for 24/7 video surveillance.
Waterproof housing to protect the cameras and survive in Rainy days.

HD1681-8WA713A HD1681-8WA713A


HD1681 Specifications


Model No.
HD1681
Video Input 24 Channels ?

Picture Saved to Cloud

Cloud Storage Dropbox
Capture Mode Interval / Motion Detection

Picture Saved to DVR

Resolution Mainstream / Substream
Capture Mode Manual / Schedule / Motion Detection

Video

Video Format
Video Input BNC 16 Inputs
BNC & IP Up to 24 Inputs (BNC x16 + IP x8 ?)
IP only 24 Inputs ?
Video Output 1 VGA & 1 HDMI Outputs
Video Output Resolution VGA: 1024x768, 1280x1024, 1440x900, 1920x1080 HDMI: 1080p

Audio

Audio Input 4 RCA Inputs
Audio Output 1 RCA Output

Recording

Video Compression H.264
Analog Recording Frame Rate 240fps@1080 (960x1080), 240fps@720p (1280x720), 480fps@WD1 (960×480)
IP IP Camera Support 8MP/5MP/4MP/3MP/2MP/1MP/D1
Total FPS 35fps
Max. IP Bandwidth per Channel 3Mbps
Recording Mode Continuous / Manual / Schedule / Motion Detection
HDD Interface 1 SATA
HDD Support Up to 6TB

Network

KView Easy Connectivity Yes
FTP Support Yes
UPnP Support Yes
DDNS Support Yes
Network Interface RJ45, 10M/100M
Network Type DHCP, Static IP, PPPoE, 3G

Playback

Local Playback Max. 16 Channels Simultaneously
Playback Search Date & Time / Event List / Pitcture / Smart Search
Playback Mode Play, Fast Forward, Fast Rewind, Zoom
Remote Playback 4 channels simultaneously via CMS or IE

General

PTZ Control RS485 Built-In & Coaxial Protocol (Nextchip)
Backup Method HDD, USB, Network
Power Supply 12V/2A
Operating Temperature (W/O HDD) -10? to 50? ( 14°F to 122°F )
Storage Temperature -20? to 70? ( -4°F to 158°F )
Working Humidity 10%~90%
Dimension (LxWxH) in mm 300X227X53

CCTV Camera Specifications


Model Name
WA713A

Video

Image Sensor 1 Mega Pixel High Quality CMOS Image Sensor
Pixels 756(H) x 504(V)
Electronics Shutter NTSC 1/60-1/100,000(sec)
PAL 1/50-1/100,000(sec)
Resolution 720P
Lens 3.6mm Fixed
Viewing Angle 65 Degrees
Video Output 1.0VP-P, 75?
S/N Ratio More than 48dB(AGC OFF)
Day / Night Mode Color during day / switches to B&W at night
Minimum Illumination While Infrared LED on "0" lux
Gain Control Auto
Backlight Compensation Auto

Night Vision

Night Vision Distance 30m / 98ft
Illumination Infrared LED
Infra-Red Wavelength 850nm
Infra-Red LED Life 10,000hrs

General

Indoor / Outdoor Weatherproof (Both)
Operating Temperature -10~50°C / 14~122°F
Storage Temperature -20~70°C / -4~158°F
Body Construction Aluminu
28 476
28 486
(10,00)
34 468
1
NETIS SE204 IP kamerový bezdrátový set - NVR wifi + 4x IP wifi kamery 720p, 1TB HDD inside - AGEMcz
60454
SEK204
[X5002]
NETIS SE204 IP kamerový bezdrátový set - NVR wifi + 4x IP wifi kamery 720p, 1TB HDD inside
Netis SEK204 kamerový set obsahuje 4x720P HD bezdrátovou IP kameru (SEC111) a 4kanálový Wireless NVR (SEV204). Tento revoluční kamerový systém, s kamerama 720p a P2P aplikací, nabízí také mobilní sledovací aplikaci pro android sw pro vaše domácí a kancelářské monitorování. V NVR ( také bezdrátové provedení) je zabudován wifi router, který pomůže vytvořit již opravdu kompletní řešení pro Váš obchod, vily, kanceláře, chaty a podobná místa.
Rychlé a hlavně kompletně bezdrátové řesení pro Vás.

http://www.netis-systems.com/en/products/Security%20Kit/2069.html#.VlhOGzOFP4Y

4CH Wireless NVR
MODEL No. SEV204
Operating System Embedded Linux operating system
VIDEO/IMAGE
Image Code Control Image code quality adjustable, variable bitstream and constant bitstream optional
Dual Stream Each channel can set main stream and sub stream
Video Standard 960P(1280*960) 30fps /720P(1280*720)30fps
Monitoring Image Quality 960P(1280*960)/720P(1280*720)
Image Motion Detection Each screen can set mutiple detection areas and set 6-level sensitivity (IPC Support)
Recording Playback Quality 4ch 720P playback simultaneously
Recording Mode Support manual, auto, dynamic detection, alarm trigger record mode
(Partly needs IPC Support)
Backup Way Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup
Recording Storage Local HDD, network
VIDEO INPUT
IP video input 4* (1280*720/1280*960) IP camera
VIDEO OUTPUT
HDMI Output 1ch, resolution: 1920*1080P/60Hz, 1920*1080P/50Hz,
1440*900, 1366*768, 1280*1024, 1024*768
VGA Output 1ch, resolution: 1920*1080P/60Hz, 1920*1080P/50Hz, 1440*900,
1366*768, 1280*1024, 1024*768
ALARM MANAGEMENT
Events Trigger Built-in motion detection, schedule
Notification Method Alarm, Buzzer, E-mail, FTP
WIRELESS
Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Signal Rate Up to 300Mbps
Frequency Range 2.4-2.4835GHz
Transmit Power <24dBm
Data Transfer Rates 802.11n:
40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps)
20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense)
801.11g:
(54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)
802.11b:
(11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)
Modulation Mode 802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM
Wireless Security 64/128-bit WEP
WPA/WPA2
WPA-PSK/WPA2-PSK
WPS
HARD DISK
Interface Type 1* SATA interface
Capacity Built-in 1TB SATA HDD (only for Standard Packing)
Support up to 4TB SATA HDD for update
INTERFACES
Standards IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
Network Interfaces 1* 10/100Mbps Auto MDI/MDIX RJ45 WAN port
3* 10/100Mbps Auto MDI/MDIX RJ45 LAN port
USB Interface 2* USB 2.0 Port
LED Indicators Power, Hard Disk,RUN
Antennas 2* 5dBi Detachable Antenna, SMA Connector
Power Supply DC 12V/3A (Output)

SOFTWARE
WAN Type DHCP, Static IP, PPPoE
Port Forwarding Virtual Servers, Port Triggering, UPnP, DMZ, FTP Private Port
LAN DHCP Client, DHCP Server
Mobile Surveillance Support iPhone, Android smart phone for remote control
Others Time Settings,Firmware Upgrade, Backup & Restore

GENERAL
Certification FCC, CE
Environment Operating Temperature: -10?~55?
Storage Temperature: -40?~70?
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Dimensions(L x W x H) 257x210x45mm

720P HD Wireless IP Camera
MODEL No. SEC111
Image Sensor 1/4" Progressive scan CMOS sensor
Min. Illumination 0.1Lux @(F1.4,AGC ON), 0 Lux with IR
Shutter time 1/25s ~ 1/100,000s
Lens 3.6mm@ F2.0 (6mm optional)
An
15 009
15 019
(10,00)
18 173
13
KGUARD set EL831 8-kanálový rekordér DVR 720P FULL HD(Easy link PLUS) + 4x 720P barevná venkovní kamera WA713A - AGEMcz
59072
EL831-4WA713A
[X5002]
KGUARD set EL831 8-kanálový rekordér DVR 720P FULL HD(Easy link PLUS) + 4x 720P barevná venkovní kamera WA713A Doprodej


Easy Link PLUS Series Combo Kit: EL831-4WA713A

Easy Link Series PLUS Combo Kit

Zabezpečte svůj domov a podnikání, tak to tak snadné!

Easy Link PLUS Series umožňují uživatelům snadno spustit zobrazení stavu vzáleně, když on nebo ona je daleko od domova nebo firmy.
Během 90 sekund, uživatelé mohli dokončit nastavení a spustit vzdálenou pohled.

Obsahuje 4ks 720p kamer s vysokým rozlišením, které poskytují vysoce kvalitní barevné záběry.
Kamery mají 3,6 mm objektiv, poskytují 65 stupňů pozorovací úhel. Všechny kamery mají silný noční vidění s dosahem až 30 m / 98 stop v naprosté tmě a mají vodotěsné případy na ochranu fotoaparátu a přežít deštivých dnů.

Klíčovou inovací řady Easy Link PLUS je možnost integrovat monitorovací systém s bezdrátovými poplašných zařízení.
Kompatibilita bezdrátového zabezpečovacího systému poskytuje uživatelům rozšířené zabezpečení bez omezení drátu. Zkontrolujte DSH-002 pro více informací.

EL831-4WA713A Features
H.264 compression latest recording technology
720P recording resolution quality is 200% better than 960H
Full HD output with 1080P display standard for connection to HDTV
Smart QR code for quick app download and easy remote mobile access setup
New P2P technology provides better network connectivity
Push notification, live view, playback, and event alarm without missing any important information
Support one high-speed SATA hard disk (up to 4TB) for long-term recording
New "Kview Link" app allows remote monitoring and alarm system control on your smartphone and tablet
Multi-lingual support- English, Chinese, Spanish, French, Russian, Japanese, German, Swedish, Danish, Italian, Czech
Mega pixel camera high resolution to make video clearer
Night vision up to 30m/98ft in total darkness
Waterproof case to protect the camera and survive rainy days
Compatible with PLUS Series wireless alarm kit


EL831-4WA713A Specifications

Model No. EL831
No. of Channel 8 Channels
Cloud
Cloud Storage No
Storage Mode No
Video
Video Format NTSC / PAL
Video Input 8 BNC Inputs
Video Output 1 VGA & 1 HDMI Outputs
Video Output Resolution "VGA: 800x600, 1024x768, 1280x1024, 1440x900, 1280x720 HDMI: 1080p"
Audio
Audio Input 4 RCA Inputs
Audio Output 1 RCA Output
Recording
Video Compression H.264
Recording Frame Rate NTSC 15fps@720P (1280x720) per Channel
PAL 15fps@720P (1280x720) per Channel
Recording Mode Always / Manual / Motion Detection / Schedule / KGUARD Alarm Sensor
HDD Interface 1 SATA
HDD Support Up to 4TB
Network
KView Easy Connectivity Yes
MyKGUARD Support No
UPnP Support Yes
DDNS Support Yes
Network Interface RJ45, 10M/100M
Network Type DHCP, Static IP, PPPoE
Playback
Local Playback Max. 8 Channels Simultaneously
Playback Search Date & Time / Event List / Smart Search
Playback Mode Play, Fast Forward, Fast Rewind, Zoom
General
PTZ Control No
E-SATA Port No
Sensor & Alarm I/O Port KGUARD Wireless Alarm Kit via RJ9 port
IR Extender Port No
Backup Method HDD, USB, Network
Power Supply 12V/2A
Operating Temperature (W/O HDD) -10? to 50? ( 14°F to 122°F )
Storage Temperature -20? to 70? ( -4°F to 158°F )
Working Humidity 10%~90%
Dimension (LxWxH) in mm 300x227x53

CCTV Camera Specifications

Video
Image Sensor 1 Mega Pixel High Quality CMOS Image Sensor
Horizontal Resolution 720P
Electronics Shutter NTSC 1/60-1/100,000(sec)
PAL 1/50-1/100,000(sec)
Lens 3.6mm
Viewing Angle 65 Degrees
Video Output 1.0VP-P, 75?
S/N Ratio More than 48dB(AGC OFF)
Day / Night Mode Color during day /
14 238
14 248
(10,00)
17 240
9
KGUARD hybrid set HD481-WA713APK4 4+2 (CCTV+IP)kanálový rekordér 1080P/720p/960H/IPcam+4x 1M barevná venkovní kamera - AGEMcz
62108
HD481-WA713APK4
[X5002]
KGUARD hybrid set HD481-WA713APK4 4+2 (CCTV+IP)kanálový rekordér 1080P/720p/960H/IPcam+4x 1M barevná venkovní kamera
HD481-4WA713A Features
Support up to 6 cameras including BNCx4 and IPx2 (switch required)
Record in Megapixel HD resolution and various hybrid resolutions (960H, 720P/1080P) at the same time.
Support both Analog 1080P/720P/960H camera and ONVIF IP camera (8MP/5MP/4MP/3MP/2MP/1MP/D1).
Support mixing and installing Analog Cameras from different technologies (AHD 1080P/AHD 720P/Standard 960H). No need to be done in groups of two.
Important image data can be saved to cloud ( dropbox )
Connect max. 6ch/12ch/24ch of combined Onvif IP camera & analogue cameras to HD DVR
Easily connect DVR with mobile devices by scanning QR code via KView pro. App.
Support up to 6TB HDD
Wide-Angle 720P (1 Megapixel) HD cameras provide crystal clear images for video recording.
Long range night vision up to 30meters (98ft) for 24/7 video surveillance.
Waterproof housing to protect the cameras and survive in Rainy days.

HD481-4WA713A Specification


HD481 Specifications


Model No.
HD481
Video Input 6 Channels ?

Picture Saved to Cloud

Cloud Storage Dropbox
Capture Mode Interval / Motion Detection

Picture Saved to DVR

Resolution Mainstream / Substream
Capture Mode Manual / Schedule / Motion Detection

Video

Video Format NTSC / PAL
Video Input BNC 4 Inputs
BNC & IP Up to 6 Inputs (BNC x4 + IP x2 ?)
IP only 6 Inputs ?
Video Output 1 VGA & 1 HDMI Outputs
Video Output Resolution VGA: 1024x768, 1280x1024, 1440x900, 1920x1080 HDMI: 1080p

Audio

Audio Input 4 RCA Inputs
Audio Output 1 RCA Output

Recording

Video Compression H.264
Analog Recording Frame Rate 60fps@1080p (1920x1080), 120fps@720p (1280x720), 120fps@WD1 (960×480)
IP IP Camera Support 8MP/5MP/4MP/3MP/2MP/1MP/D1
Total FPS 30fps
Max. IP Bandwidth per Channel 4Mbps
Recording Mode Continuous / Manual / Schedule / Motion Detection
HDD Interface 1 SATA
HDD Support Up to 6TB

Network

KView Easy Connectivity Yes
FTP Support Yes
UPnP Support Yes
DDNS Support Yes
Network Interface RJ45, 10M/100M
Network Type DHCP, Static IP, PPPoE, 3G

Playback

Local Playback Max. 4 Channels Simultaneously
Playback Search Date & Time / Event List / Pitcture / Smart Search
Playback Mode Play, Fast Forward, Fast Rewind, Zoom
Remote Playback 4 channels simultaneously via CMS or IE

General

PTZ Control RS485 Built-In & Coaxial Protocol (Nextchip)
Backup Method HDD, USB, Network
Power Supply 12V/2A
Operating Temperature (W/O HDD) -10? to 50? ( 14°F to 122°F )
Storage Temperature -20? to 70? ( -4°F to 158°F )
Working Humidity 10%~90%
Dimension (LxWxH) in mm 300X227X53

CCTV Camera Specifications


Model Name
WA713A

Video

Image Sensor 1 Mega Pixel High Quality CMOS Image Sensor
Pixels 756(H) x 504(V)
Electronics Shutter NTSC 1/60-1/100,000(sec)
PAL 1/50-1/100,000(sec)
Resolution 720P
Lens 3.6mm Fixed
Viewing Angle 65 Degrees
Video Output 1.0VP-P, 75?
S/N Ratio More than 48dB(AGC OFF)
Day / Night Mode Color during day / switches to B&W at night
Minimum Illumination While Infrared LED on "0" lux
Gain Control Auto
Backlight Compensation Auto

Night Vision

Night Vision Distance 30m / 98ft
Illumination Infrared LED
Infra-Red Wavelength 850nm
Infra-Red LED Life 10,000hrs

General

Indoor / Outdoor Weatherproof (Both)
Operating Temperature -10~50°C / 14~122°F
Storage Temperature -20~70°C / -4~158°F
Body Construction Aluminum
Dime
12 690
12 700
(10,00)
15 367
2
KGUARD set zabezpečovací DSH-002 pro EL434/831 (wireless alarm kit-antena + PIR + DOOR senzor 2x + siréna + 2x dálkový ovladač) - AGEMcz
59073
DSH-002
[X5002]
KGUARD set zabezpečovací DSH-002 pro EL434/831 (wireless alarm kit-antena + PIR + DOOR senzor 2x + siréna + 2x dálkový ovladač) Doprodej
DSH-002

DSH-002


Extend your surveillance system, Wirelessly!

DSH-002 is a plug-and-play solution.
Simply plug attenna into PLUS series surveillance system and alarm system will be automatically setup.

DSH-002 is highly integrated with KGUARD PLUS series surveillance system.
When alarm device is triggered, the surveillance system could start email, recording, siren, message, and push notification

With DSH-002, security could be further extended without wire limitations.
For example, motion sensor could be deployed in less-frequently visited area so that users could receive push notification when unexpected motion is detected. Moreover, users could setup siren to sound when sensor is triggered in order to fend off intruders.

DSH-002 Features
Whole system is wireless and very easy to install
Plug-and-play solution (no setup required)
Highly integrated with KGUARD PLUS Series surveillance system
Trigger email, recording, siren, message, and push notification
QR code technology to add new devices
New "Kview Link" app allows alarm system control on your smartphone and tablet
3 877
3 887
(10,00)
4 703
2
KGUARD hybrid set HD881-WA713APK4 8+4 (CCTV+IP)kanálový rekordér 1080P/720p/960H/IPcam+4x 1M barevná venkovní kamera - AGEMcz
62109
HD881-WA713APK4
[X5002]
KGUARD hybrid set HD881-WA713APK4 8+4 (CCTV+IP)kanálový rekordér 1080P/720p/960H/IPcam+4x 1M barevná venkovní kamera
HD881-4WA713A Features
Support up to 12 cameras including BNCx8 and IPx4 (switch required)
Record in Megapixel HD resolution and various hybrid resolutions (960H, 720P/1080P) at the same time.
Support both Analog 1080P/720P/960H camera and ONVIF IP camera (8MP/5MP/4MP/3MP/2MP/1MP/D1).
Support mixing and installing Analog Cameras from different technologies (AHD 1080P/AHD 720P/Standard 960H). No need to be done in groups of two.
Important image data can be saved to cloud ( dropbox )
Connect max. 6ch/12ch/24ch of combined Onvif IP camera & analogue cameras to HD DVR
Easily connect DVR with mobile devices by scanning QR code via KView pro. App.
Support up to 6TB HDD
Wide-Angle 720P (1 Megapixel) HD cameras provide crystal clear images for video recording.
Long range night vision up to 30meters (98ft) for 24/7 video surveillance.
Waterproof housing to protect the cameras and survive in Rainy days.

HD881-4WA713A Specification


HD881 Specifications


Model No.
HD881
Video Input 12 Channels ?

Picture Saved to Cloud

Cloud Storage Dropbox
Capture Mode Interval / Motion Detection

Picture Saved to DVR

Resolution Mainstream / Substream
Capture Mode Manual / Schedule / Motion Detection

Video

Video Format
Video Input BNC 8 Inputs
BNC & IP Up to 12 Inputs (BNC x8 + IP x4 ?)
IP only 12 Inputs ?
Video Output 1 VGA & 1 HDMI Outputs
Video Output Resolution VGA: 1024x768, 1280x1024, 1440x900, 1920x1080 HDMI: 1080p

Audio

Audio Input 4 RCA Inputs
Audio Output 1 RCA Output

Recording

Video Compression H.264
Analog Recording Frame Rate 120fps@1080 (960x1080), 120fps@720p (1280x720), 240fps@WD1 (960×480)
IP IP Camera Support 8MP/5MP/4MP/3MP/2MP/1MP/D1
Total FPS 60fps
Max. IP Bandwidth per Channel 3Mbps
Recording Mode Continuous / Manual / Schedule / Motion Detection
HDD Interface 1 SATA
HDD Support Up to 6TB

Network

KView Easy Connectivity Yes
FTP Support Yes
UPnP Support Yes
DDNS Support Yes
Network Interface RJ45, 10M/100M
Network Type DHCP, Static IP, PPPoE, 3G

Playback

Local Playback Max. 8 Channels Simultaneously
Playback Search Date & Time / Event List / Pitcture / Smart Search
Playback Mode Play, Fast Forward, Fast Rewind, Zoom
Remote Playback 4 channels simultaneously via CMS or IE

General

PTZ Control RS485 Built-In & Coaxial Protocol (Nextchip)
Backup Method HDD, USB, Network
Power Supply 12V/2A
Operating Temperature (W/O HDD) -10? to 50? ( 14°F to 122°F )
Storage Temperature -20? to 70? ( -4°F to 158°F )
Working Humidity 10%~90%
Dimension (LxWxH) in mm 300X227X53

CCTV Camera Specifications


Model Name
WA713A

Video

Image Sensor 1 Mega Pixel High Quality CMOS Image Sensor
Pixels 756(H) x 504(V)
Electronics Shutter NTSC 1/60-1/100,000(sec)
PAL 1/50-1/100,000(sec)
Resolution 720P
Lens 3.6mm Fixed
Viewing Angle 65 Degrees
Video Output 1.0VP-P, 75?
S/N Ratio More than 48dB(AGC OFF)
Day / Night Mode Color during day / switches to B&W at night
Minimum Illumination While Infrared LED on "0" lux
Gain Control Auto
Backlight Compensation Auto

Night Vision

Night Vision Distance 30m / 98ft
Illumination Infrared LED
Infra-Red Wavelength 850nm
Infra-Red LED Life 10,000hrs

General

Indoor / Outdoor Weatherproof (Both)
Operating Temperature -10~50°C / 14~122°F
Storage Temperature -20~70°C / -4~158°F
Body Construction Aluminum
D
14 238
14 248
(10,00)
17 240
10
KGUARD hybrid rekordér HD481 4+2k(CCTV+IP)kanálový rekordér 1080P/720p/960H/IPcam - AGEMcz
62105
HD481
[X5002]
KGUARD hybrid rekordér HD481 4+2k(CCTV+IP)kanálový rekordér 1080P/720p/960H/IPcam
HD481 Features
Support up to 6 cameras including BNCx4 and IPx2 (switch required)
Support up to 6 cameras including BNCx4 and IPx2 (switch required)
Record in Megapixel HD resolution and various hybrid resolutions (960H, 720P/1080P) at the same time.
Support both Analog 1080P/720P/960H camera and ONVIF IP camera (8MP/5MP/4MP/3MP/2MP/1MP/D1).
Support mixing and installing Analog Cameras from different technologies (AHD 1080P/AHD 720P/Standard 960H). No need to be done in groups of two.
Important image data can be saved to cloud ( dropbox )
Connect max. 6ch/12ch/24ch of combined Onvif IP camera & analogue cameras to HD DVR
Easily connect DVR with mobile devices by scanning QR code via KView pro. App.
Support up to 6TB HDD

HD481 Specification


HD481 Specifications


Model No.
HD481
Video Input 6 Channels ?

Picture Saved to Cloud

Cloud Storage Dropbox
Capture Mode Interval / Motion Detection

Picture Saved to DVR

Resolution Mainstream / Substream
Capture Mode Manual / Schedule / Motion Detection

Video

Video Format NTSC / PAL
Video Input BNC 4 Inputs
BNC & IP Up to 6 Inputs (BNC x4 + IP x2 ?)
IP only 6 Inputs ?
Video Output 1 VGA & 1 HDMI Outputs
Video Output Resolution VGA: 1024x768, 1280x1024, 1440x900, 1920x1080 HDMI: 1080p

Audio

Audio Input 4 RCA Inputs
Audio Output 1 RCA Output

Recording

Video Compression H.264
Analog Recording Frame Rate 60fps@1080p (1920x1080), 120fps@720p (1280x720), 120fps@WD1 (960×480)
IP IP Camera Support 8MP/5MP/4MP/3MP/2MP/1MP/D1
Total FPS 30fps
Max. IP Bandwidth per Channel 4Mbps
Recording Mode Continuous / Manual / Schedule / Motion Detection
HDD Interface 1 SATA
HDD Support Up to 6TB

Network

KView Easy Connectivity Yes
FTP Support Yes
UPnP Support Yes
DDNS Support Yes
Network Interface RJ45, 10M/100M
Network Type DHCP, Static IP, PPPoE, 3G

Playback

Local Playback Max. 4 Channels Simultaneously
Playback Search Date & Time / Event List / Pitcture / Smart Search
Playback Mode Play, Fast Forward, Fast Rewind, Zoom
Remote Playback 4 channels simultaneously via CMS or IE

General

PTZ Control RS485 Built-In & Coaxial Protocol (Nextchip)
Backup Method HDD, USB, Network
Power Supply 12V/2A
Operating Temperature (W/O HDD) -10? to 50? ( 14°F to 122°F )
Storage Temperature -20? to 70? ( -4°F to 158°F )
Working Humidity 10%~90%
Dimension (LxWxH) in mm 300X227X53

5 724
5 734
(10,00)
6 938
0
KGUARD hybrid rekordér HD881 8+4k(CCTV+IP)kanálový rekordér 1080P/720p/960H/IPcam - AGEMcz
62106
HD881
[X5002]
KGUARD hybrid rekordér HD881 8+4k(CCTV+IP)kanálový rekordér 1080P/720p/960H/IPcam
HD881 Features

Support up to 12 cameras including BNCx8 and IPx4 (switch required)
Record in Megapixel HD resolution and various hybrid resolutions (960H, 720P/1080P) at the same time.
Support both Analog 1080P/720P/960H camera and ONVIF IP camera (8MP/5MP/4MP/3MP/2MP/1MP/D1).
Support mixing and installing Analog Cameras from different technologies (AHD 1080P/AHD 720P/Standard 960H). No need to be done in groups of two.
Important image data can be saved to cloud ( dropbox )
Connect max. 6ch/12ch/24ch of combined Onvif IP camera & analogue cameras to HD DVR
Easily connect DVR with mobile devices by scanning QR code via KView pro. App.
Support up to 6TB HDD

HD881 Specification


HD881 Specifications


Model No.
HD881
Video Input 12 Channels ?

Picture Saved to Cloud

Cloud Storage Dropbox
Capture Mode Interval / Motion Detection

Picture Saved to DVR

Resolution Mainstream / Substream
Capture Mode Manual / Schedule / Motion Detection

Video

Video Format
Video Input BNC 8 Inputs
BNC & IP Up to 12 Inputs (BNC x8 + IP x4 ?)
IP only 12 Inputs ?
Video Output 1 VGA & 1 HDMI Outputs
Video Output Resolution VGA: 1024x768, 1280x1024, 1440x900, 1920x1080 HDMI: 1080p

Audio

Audio Input 4 RCA Inputs
Audio Output 1 RCA Output

Recording

Video Compression H.264
Analog Recording Frame Rate 120fps@1080 (960x1080), 120fps@720p (1280x720), 240fps@WD1 (960×480)
IP IP Camera Support 8MP/5MP/4MP/3MP/2MP/1MP/D1
Total FPS 60fps
Max. IP Bandwidth per Channel 3Mbps
Recording Mode Continuous / Manual / Schedule / Motion Detection
HDD Interface 1 SATA
HDD Support Up to 6TB

Network

KView Easy Connectivity Yes
FTP Support Yes
UPnP Support Yes
DDNS Support Yes
Network Interface RJ45, 10M/100M
Network Type DHCP, Static IP, PPPoE, 3G

Playback

Local Playback Max. 8 Channels Simultaneously
Playback Search Date & Time / Event List / Pitcture / Smart Search
Playback Mode Play, Fast Forward, Fast Rewind, Zoom
Remote Playback 4 channels simultaneously via CMS or IE

General

PTZ Control RS485 Built-In & Coaxial Protocol (Nextchip)
Backup Method HDD, USB, Network
Power Supply 12V/2A
Operating Temperature (W/O HDD) -10? to 50? ( 14°F to 122°F )
Storage Temperature -20? to 70? ( -4°F to 158°F )
Working Humidity 10%~90%
Dimension (LxWxH) in mm 300X227X53

HD881 Package
HD881 DVR x1
Software CD x1
DC 12V Power Adapter x1
Remote Control x1
USB Mouse x1
DVR Quick Guide x1
7 473
7 483
(10,00)
9 054
5
KGUARD hybrid rekordér HD1681 16+8(CCTV+IP)kanálový rekordér 1080P/720p/960H/IPcam - AGEMcz
62107
HD1681
[X5002]
KGUARD hybrid rekordér HD1681 16+8(CCTV+IP)kanálový rekordér 1080P/720p/960H/IPcam
HD1681 Features
Support up to 24 cameras including BNCx16 and IPx8 (switch required)
Record in Megapixel HD resolution and various hybrid resolutions (960H, 720P/1080P) at the same time.
Support both Analog 1080P/720P/960H camera and ONVIF IP camera (8MP/5MP/4MP/3MP/2MP/1MP/D1).
Support mixing and installing Analog Cameras from different technologies (AHD 1080P/AHD 720P/Standard 960H). No need to be done in groups of two.
Important image data can be saved to cloud ( dropbox )
Connect max. 6ch/12ch/24ch of combined Onvif IP camera & analogue cameras to HD DVR
Easily connect DVR with mobile devices by scanning QR code via KView pro. App.
Support up to 6TB HDD

HD1681 Specification


HD1681 Specifications


Model No.
HD1681
Video Input 24 Channels ?

Picture Saved to Cloud

Cloud Storage Dropbox
Capture Mode Interval / Motion Detection

Picture Saved to DVR

Resolution Mainstream / Substream
Capture Mode Manual / Schedule / Motion Detection

Video

Video Format
Video Input BNC 16 Inputs
BNC & IP Up to 24 Inputs (BNC x16 + IP x8 ?)
IP only 24 Inputs ?
Video Output 1 VGA & 1 HDMI Outputs
Video Output Resolution VGA: 1024x768, 1280x1024, 1440x900, 1920x1080 HDMI: 1080p

Audio

Audio Input 4 RCA Inputs
Audio Output 1 RCA Output

Recording

Video Compression H.264
Analog Recording Frame Rate 240fps@1080 (960x1080), 240fps@720p (1280x720), 480fps@WD1 (960×480)
IP IP Camera Support 8MP/5MP/4MP/3MP/2MP/1MP/D1
Total FPS 35fps
Max. IP Bandwidth per Channel 3Mbps
Recording Mode Continuous / Manual / Schedule / Motion Detection
HDD Interface 1 SATA
HDD Support Up to 6TB

Network

KView Easy Connectivity Yes
FTP Support Yes
UPnP Support Yes
DDNS Support Yes
Network Interface RJ45, 10M/100M
Network Type DHCP, Static IP, PPPoE, 3G

Playback

Local Playback Max. 16 Channels Simultaneously
Playback Search Date & Time / Event List / Pitcture / Smart Search
Playback Mode Play, Fast Forward, Fast Rewind, Zoom
Remote Playback 4 channels simultaneously via CMS or IE

General

PTZ Control RS485 Built-In & Coaxial Protocol (Nextchip)
Backup Method HDD, USB, Network
Power Supply 12V/2A
Operating Temperature (W/O HDD) -10? to 50? ( 14°F to 122°F )
Storage Temperature -20? to 70? ( -4°F to 158°F )
Working Humidity 10%~90%
Dimension (LxWxH) in mm 300X227X53

HD1681 Package
HD1681 DVR x1
Software CD x1
DC 12V Power Adapter x1
Remote Control x1
USB Mouse x1
DVR Quick Guide x1
15 282
15 292
(10,00)
18 503
0
UBIQUITI UNIFI NVR Controller , 500GB - AGEMcz
59925
UVC-NVR
[X5002]
UBIQUITI UNIFI NVR Controller , 500GB
UniFi NVR je plug-and-play nahrávací NVR zařízení s nízkou spotřebou energie . Software UniFi video je předinstalováno pro rychlou a snadnou instalaci. Není vyžadován žádný další software. UniFi NVR má vestavěný 500GB pevný disk. To odpovídá přibližně 1200 nahrávacích hodin (50dní) při rozlišení 480p nebo 400 nahrávacích hodin (16dní) v rozlišení 720p ( může se lišit v závislosti na snímkové frekvenci). UniFi NVR podporuje až 50 kamer.

Intuitivní management
UniFi Video software má moderní uživatelské rozhraní a velmi rozsáhlou sadu funkcí, včetně detekce pohybu ve vámi ohraničenými zónami, e-mailová upozornění, živý náhled, správa úložného prostoru a analýzi.

UniFi NVR Specifikace:
•Rozměry: 135 x 190 x 25 mm
•Hmotnost: 483 g
•CPU: Intel D2550
•Paměť: 4 GB
•Kapacita HDD: 500 GB
•LAN: 1x 10/100/1000 Ethernet
•Napájení: 65 W, 19V, 3.42A
•Certifikace: CE, IC
UniFi NVR Specifikace:
•Software: Browser-Based Interface, Tablets and Smartphones Supported
•Množství připojených kamer: Doporučené množství = 20x Ubiquiti airCam. Podporováno až 50.
•Podporované OS: Windows, Mac OS X and Linux
•Podporované prohlížeče: Chrome, Internet Explorer 10, Firefox, and Safari

9 736
9 737
(1,50)
11 782
5
KGUARD redukce BNC M - F konektor zásuvka (také pro KGUARD systémy) - AGEMcz
45851
KJR-14
[X5002]
KGUARD redukce BNC M - F konektor zásuvka (také pro KGUARD systémy)
Popis produktu:
Redukce BNC samec - F konektor samice

- pro video
- kovová

23
23
(0,00)
28
8
KGUARD napájecí splitter pro 4 kamery Kguard, rozbočení napájení - AGEMcz
48803
KG-SPLIT
[X5002]
KGUARD napájecí splitter pro 4 kamery Kguard, rozbočení napájení
Možnost napájení až 4 kamer Kguard z jednoho napájecího adapteru.
173
176
(3,00)
213
9
KGUARD napájecí adaptér pro kamery Kguard (max. 1500mA) - AGEMcz
48802
KG-ADAPT
[X5002]
KGUARD napájecí adaptér pro kamery Kguard (max. 1500mA)
Popis produktu:
Napájecí spínaný adaptér pro napájení kamer Kguard
- 12V výstupní stabilizované napětí DC
- 1,5A maximální napájecí proud
- 100-240V / 50Hz AC vstupní napětí, síťová vidlice
- výstupní konektor: vnější průměr konektoru: 5,5mm, vnitřní průměr konektoru: 2,1mm
309
312
(3,00)
378
9
KGUARD Ah281b-30 prodlužovací kabel 30m signál+napájení (k HDkamerám KGUARD+i k ostatním) - AGEMcz
62111
Ah281b-30
[X5002]
KGUARD Ah281b-30 prodlužovací kabel 30m signál+napájení (k HDkamerám KGUARD+i k ostatním)
- Kabel obsahuje BNC a napájecí konektory na obou stranách
- dá se použít jako přípojný nebo prodlužovací (obsahuje adaptéry M -> F)
- Délka : 30m
- Plug and play instalace bez použití nářadí
- Výborná kvalita přenosu
- Kompatibilní se všemi systémy HD KGuard nebo s jinými CCTV

feature
Not recommended for cameras with power consumption over 300mA (Infrared LED on) or night vision over 30M
Do not extend this cable for KGUARD 720P/1080P High-Definition security cameras


Specifications

Model No. AMB12-18
Product Name Microphone
Cable Length 30m/100ft
Cable Connection BNC: Male/Male
Cable AWG Power: DC Jack Male/Female
Cable Diameter 24 AWG
Cable Resistance 4.0 mm
VIDEO+: 6.66?(MAX)
VIDEO-: 4.16?(MAX)
POWER+: 2.67?(MAX)
POWER-: 4.16?(MAX)
637
637
(0,00)
771
35
KGUARD AMB12-18 MINI mikrofon, vnitřní použití, délka kabelu 18m, (vhodný ke všem DVR s RCA audio vstupem ) - AGEMcz
53641
AMB12-18
[X5002]
KGUARD AMB12-18 MINI mikrofon, vnitřní použití, délka kabelu 18m, (vhodný ke všem DVR s RCA audio vstupem )
- Mikrofon pro záznam zvukové stopy do DVR.
- Délka kabelu 18m
- Pro vnitřní použití
- Pro všechny DVR s RCA vstupem
- Snímá do vzdálenosti 5 - 8 metrů.
- Napájecí splitter
383
384
(1,00)
465
3
KGUARD redukce BNC(M) - CINCH(F) pro připojení kamery nebo rekordéru k TV - AGEMcz
43772
BNCCINCH
[X5002]
KGUARD redukce BNC(M) - CINCH(F) pro připojení kamery nebo rekordéru k TV
Redukce pro připojení CINCH konektoru do BNC konektoru.

- Ideální např. pro připojení kamery nebo rekordéru k TV

Konektory:
1x BNC samec
1x CINCH RCA samice

64
64
(0,00)
77
0
KGUARD LED zástrčka DC 2,1 / 5,5 (přechodka k napájecímu adaptéru na svorky), vhodné pro Kguard - AGEMcz
51671
1000625/7030107
[X5002]

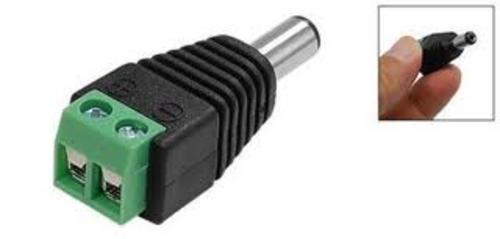

KGUARD LED zástrčka DC 2,1 / 5,5 (přechodka k napájecímu adaptéru na svorky), vhodné pro Kguard
Popis produktu:
Napájecí konektor se svorkovnicí DC - samec je užitečný zejména pro připojení kabelu z libovolného zařízení a konektor bez nutnosti pájení

SPECIFIKACE

DC Velikost: 2,1 x 5,5 (mm)
Způsob připojení: šroubovací konektor pro kabely

Vhodné i pro Kguard kamerové instalace.
32
33
(1,50)
40
46
KGUARD LED zásuvka DC 2,1 / 5,5 (přechodka k napájecímu adaptéru na svorky) - AGEMcz
44950
100062/7030106
[X5002]

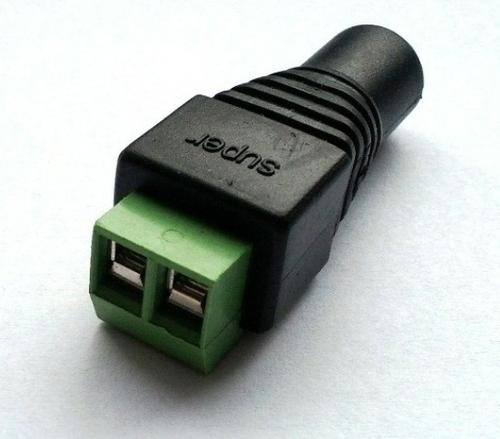

KGUARD LED zásuvka DC 2,1 / 5,5 (přechodka k napájecímu adaptéru na svorky)
Popis produktu:
DC konektor 2,1 x 5,5 mm s vývody je užitečný zejména pro připojení kabelu z libovolného zařízení a konektor bez nutnosti pájení.

SPECIFIKACE

DC Velikost: 2,1 x 5,5 (mm)
Způsob připojení: šroubovací konektor pro kabely


32
33
(1,50)
40
3
1
