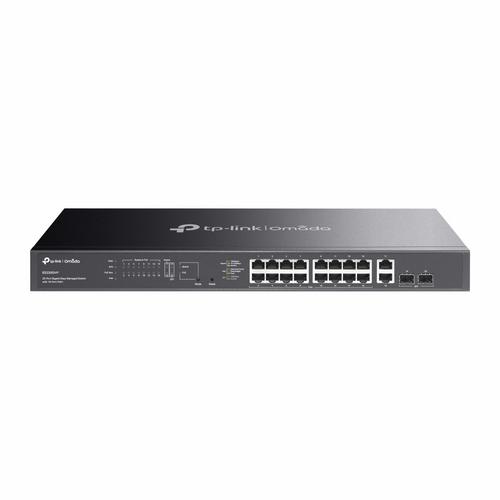

ES220GMP New
Omada 20portový gigabitový Easy Managed switch s 16 porty PoE+
16× gigabitové PoE+ RJ45 porty kompatibilní s 802.3at/af
2× gigabitový RJ45 port, 2× gigabitový SFP combo port
Rozpočet PoE napájení 250 W, až 30 W pro každý PoE port*
Snadné použití: Podporuje plug-and-play pro okamžité připojení a jednoduchou konfiguraci pro další funkce
Centralizovaná cloudová správa přes web nebo aplikaci Omada†
Až 250 m PoE**, QoS?, automatické obnovení PoE‡ a izolace portů pro spolehlivou síť v dohledových systémech
Automatická prevence smyček, VLAN a IGMP Snooping
Odolné kovové pouzdro a možnost montáže na stůl nebo zeď
HARDWARE FEATURES
Interface • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)
• 2× 10/100/1000 Mbps RJ45 Port
• 2× Gigabit SFP Slot
• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity 2
Installation Rackmountable
Physical Security Lock ?
Power Supply 100–240V AC, 50/60Hz
PoE Ports (RJ45) • Standard: 802.3af PoE and 802.3at PoE+ compliant
• PoE Ports: 16 ports
• PoE Budget: 250W available for all PoE+ ports, 30W max per port
• Fast PoE & Perpetual PoE
• PoE Auto Recovery‡
• Up to 250m PoE transmission distance**
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in.(440 × 180 × 44 mm)
Surge Protection ±6kV
PERFORMANCE
Switching Capacity 40 Gbps
Packet Forwarding Rate 29.76 Mpps
MAC Address Table 8K
Packet Buffer Memory 4 Mbit
Jumbo Frame 15 KB
SOFTWARE FEATURES
Quality of Service • Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control?
L2 Features • Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP
L2 Multicast • IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN • MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission Method Store-And-Forward
Management Features
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features • Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†
| SWITCH počet portů LAN | 5x |
| SWITCH počet rozšiřujících portů | není |
| SWITCH rychlost | Gigabit Ethernet 1000 Mbps |
| SWITCH management | NE |
| SWITCH funkce POE | NE |
| SWITCH úprava | kovový |
| SWITCH podpora IPv6 | NE |
| SWITCH provedení | Desktop |
